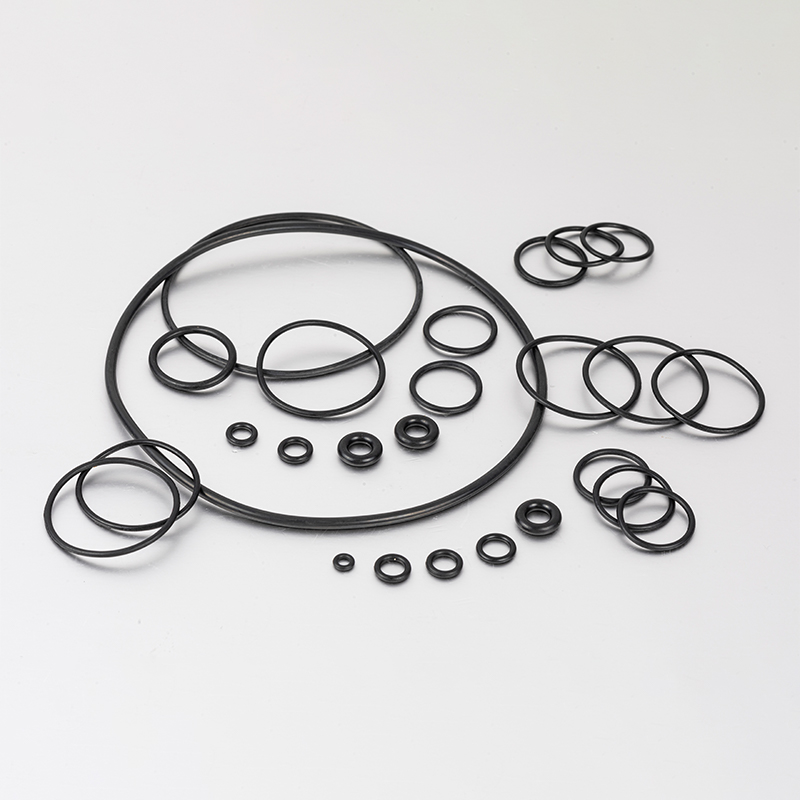

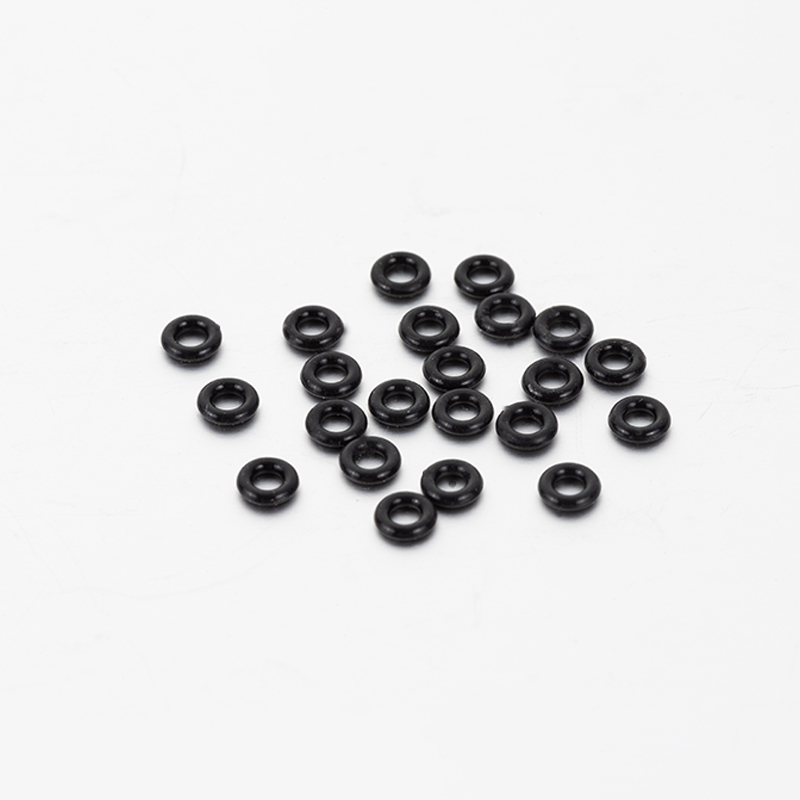

Rubber O-rings are a common type of seal used in a variety of applications to prevent leaks, prevent contamination, and provide a reliable seal. The performance characteristics of rubber O-rings depend on several factors, including material, size, shape, and application conditions. The following are some general performance characteristics of rubber O-ring seals:
1. Compression Set: This is a measure of the ability of an O-ring to return to its original shape after compression. A good O-ring should have a low compression set, indicating that it can maintain its sealing properties over time.
2. Chemical resistance: Rubber O-rings can be made from a variety of materials, each with different chemical resistance. Selecting the proper material for the application is important to ensure that the o-ring can withstand exposure to specific chemicals without degradation or failure.
3. Temperature resistance: The temperature range in which an O-ring can effectively function is an important consideration. Material selection for an O-ring is also critical to ensuring it can handle the temperatures required for a particular application.
4. Hardness: The hardness of an O-ring affects its ability to seal effectively. Stiffer o-rings can withstand higher pressures but may not be as effective at sealing uneven surfaces.
5. Friction: Friction is an important consideration in dynamic applications such as rotating shafts. O-rings with too much friction will wear out faster and cause heat to build up, which can lead to failure.
6. Wear resistance: The wear resistance of O-rings is important for applications with repetitive motion or contact with rough surfaces.
7. Compatibility: The compatibility of the O-ring material with the fluid or gas being sealed is critical to ensuring that the O-ring will not degrade or react with the media to cause failure.
Overall, the performance characteristics of rubber O-rings are critical to ensuring an effective seal in a variety of applications. It is important to select the proper material and size for the application to ensure optimum performance and reliability.

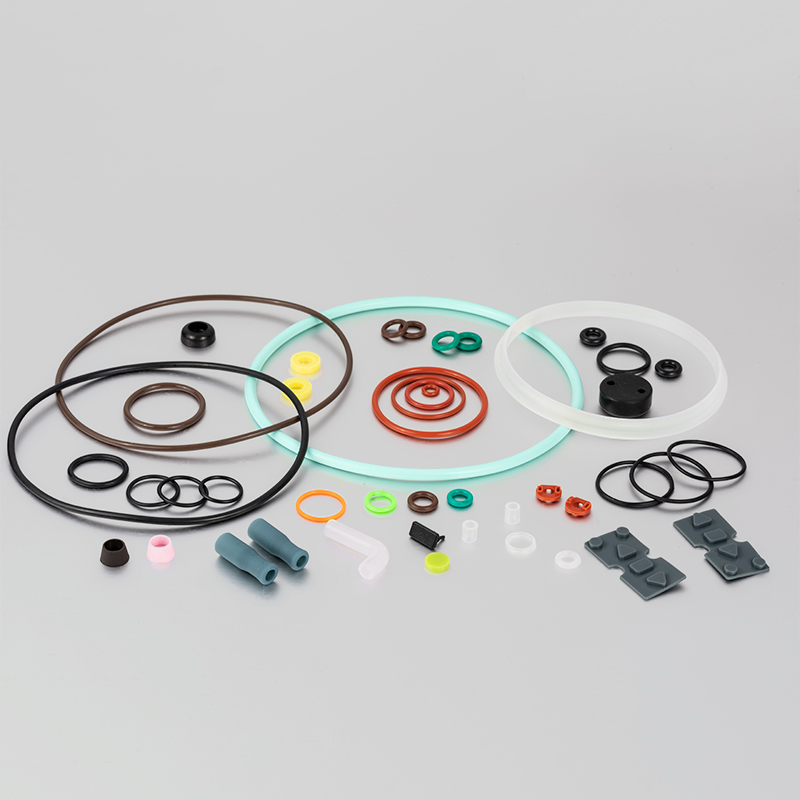

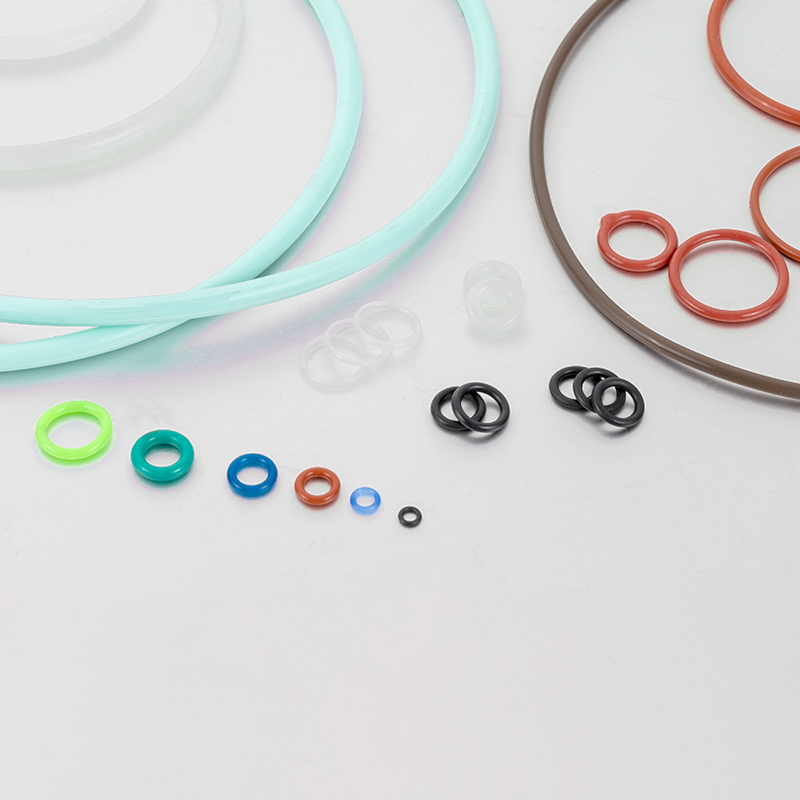

Rubber O-ring seals can be made from a variety of materials, each with different properties and suitability for specific applications. Here are some common materials used to make rubber O-ring seals:
1. Nitrile Butadiene Rubber (NBR): Nitrile butadiene rubber is a synthetic rubber commonly used to make O-rings because of its excellent resistance to oils, fuels, and hydraulic fluids. It also has good mechanical properties and is relatively low cost.
2. Viton (FKM): Viton is a fluorocarbon-based synthetic rubber known for its excellent chemical and temperature resistance. It can withstand high temperatures and harsh chemicals, making it suitable for demanding applications.
3. Ethylene Propylene Diene Rubber (EPDM): EPDM is a synthetic rubber with good weather resistance, ozone resistance, and water resistance. It is commonly used in outdoor applications and the automotive industry.
4. Silica gel (VMQ): Silicone rubber has excellent temperature resistance and is often used on high-temperature occasions. It also has good flexibility and electrical insulation properties.
5. Neoprene (CR): Neoprene is a synthetic rubber with good resistance to oil, water, and chemicals. It is commonly used in applications requiring good weather and ozone resistance.
6. Polyurethane (PU): Polyurethane rubber has good wear resistance and mechanical properties. It is commonly used in dynamic applications such as hydraulic cylinders and pneumatic systems.
7. Fluorosilicone rubber (FVMQ): Fluorosilicone rubber is a synthetic rubber with similar properties to silicone but with improved fuel and oil resistance. It is commonly used in aerospace and automotive applications.
The choice of rubber O-ring material depends on specific application requirements such as temperature range, chemical resistance, and mechanical properties. Choosing the right material will ensure the optimum performance and service life of your seals.
What Are The Uses Of Rubber O-Ring Seals?
Rubber O-ring seals are used in a wide variety of applications requiring a reliable and effective seal. Here are some common uses for rubber O-rings:
1. Aerospace: O-rings are used in aerospace applications to seal fuel systems, hydraulic systems, and pneumatic systems. They are also used in engines and turbines to prevent leaks and contamination.
2. Automotive: O-rings are used in automotive applications to seal engines, gearboxes, fuel systems, and air conditioning systems. They are also used in braking systems to prevent leaks and contamination.
3. Piping and water treatment: O-rings are used in plumbing and water treatment applications to prevent leaks and contamination in pipes, valves, and pumps.
4. Medical and pharmaceutical: O-rings are used in medical and pharmaceutical applications to prevent contamination of fluid transfer systems and medical equipment.
5. Industrial equipment: O-rings are used in industrial equipment such as pumps, compressors, and hydraulic systems to prevent leakage and contamination. They are also used in conveyor systems and other machinery to keep out dust and debris.
6. Oil and gas: O-rings are used in the oil and gas industry to seal valves, pumps, and other equipment. They are also used in drilling and exploration equipment to prevent contamination and spills.
7. Consumer goods: O-rings are used in consumer goods such as kitchen utensils, power tools, and electronics to prevent leakage and contamination.
Overall, rubber O-ring seals
are versatile and used in many industries and applications where a reliable and effective seal is required.
